These vacuum suction cups and suckers are precision molded in natural gum rubber, strengthened synthetic rubber, or heat resistant silicone. All-Vac’s cups run on the world’s finest packaging machinery, printing presses, inserters and collators.
Specially designed for working with paper, board, cartoning and foil, the cups are either flange mounted into a fitting or they attach simply by pushing them onto a pipe or hose barb.
| Product | Lip Diameter (Inches) | Overall Height (Inches) | Mounting Stem (Inches) | Lip Diameter (MM) | Overall Height (MM) | Mounting Stem (MM) | Cleats | Bellows | |
|---|---|---|---|---|---|---|---|---|---|
 |
1648 |
2.5in | 2.06in | 0.75in | 63.5mm | 52.3mm | 19.1mm | ||
 |
1648-Red Neo |
2.5in | 2.06in | 0.75in | 63.5mm | 52.3mm | 19.1mm | ||
 |
472 |
2in | 0.75in | 0.56in | 50.8mm | 19.1mm | 14.2mm | ||
 |
VC269-SILX |
1.81in | 0.43in | 0.64in | 46mm | 10.9mm | 16.3mm | ||
 |
3121 |
1.57in | 1.91in | 0.59in | 40mm | 48.5mm | 15mm | ||
 |
1999 |
1.56in | 1.44in | 0.62in | 39.6mm | 36.6mm | 15.7mm | ||
 |
1999-Silicone |
1.56in | 1.44in | 0.62in | 39.6mm | 36.6mm | 15.7mm | ||
 |
57 |
1.5in | 1.12in | 0.53in | 38.1mm | 28.4mm | 13.5mm | ||
 |
67 |
1.5in | 1.06in | 0.23in | 38.1mm | 26.9mm | 5.8mm | ||
 |
1218 |
1.5in | 0.75in | 0.5in | 38.1mm | 19.1mm | 12.7mm | ||
 |
1218-Neo |
1.5in | 0.75in | 0.5in | 38.1mm | 19.1mm | 12.7mm | ||
 |
18092 |
1.5in | 0.81in | 0.22in | 38.1mm | 20.6mm | 5.6mm | ||
 |
18092-2 |
1.5in | 0.81in | 0.22in | 38.1mm | 20.6mm | 5.6mm | ||
 |
18092-7 |
1.5in | 0.81in | 0.22in | 38.1mm | 20.6mm | 5.6mm | ||
 |
18092-10 |
1.5in | 0.81in | 0.22in | 38.1mm | 20.6mm | 5.6mm | ||
 |
18092-12 |
1.5in | 0.81in | 0.22in | 38.1mm | 20.6mm | 5.6mm | ||
 |
124-Light |
1.44in | 0.31in | 0.69in | 36.6mm | 7.9mm | 17.5mm | ||
 |
CC-1646 |
1.38in | 0.56in | 0.29in | 35.1mm | 14.2mm | 7.4mm | ||
 |
58 |
1.37in | 1in | 0.38in | 34.8mm | 25.4mm | 9.7mm | ||
 |
58-Poly |
1.37in | 1in | 0.38in | 34.8mm | 25.4mm | 9.7mm | ||
 |
59 |
1.37in | 0.81in | 0.24in | 34.8mm | 20.6mm | 6.1mm | ||
 |
59 CUT |
1.37in | 0.35in | 0.24in | 34.8mm | 8.9mm | 6.1mm | ||
 |
61 |
1.37in | 0.75in | 0.24in | 34.8mm | 19.1mm | 6.1mm | ||
 |
55 |
1.31in | 1in | 0.25in | 33.3mm | 25.4mm | 6.4mm | ||
 |
56-G |
1.31in | 1in | 0.37in | 33.3mm | 25.4mm | 9.4mm | ||
 |
56-N |
1.31in | 1in | 0.37in | 33.3mm | 25.4mm | 9.4mm | ||
 |
56-Silicone |
1.31in | 1in | 0.37in | 33.3mm | 25.4mm | 9.4mm | ||
 |
62 |
1.25in | 0.37in | 0.24in | 31.8mm | 9.4mm | 6.1mm | ||
 |
96 |
1.25in | 1in | 0.63in | 31.8mm | 25.4mm | 16mm | ||
 |
124-Heavy |
1.25in | 0.23in | 0.59in | 31.8mm | 5.8mm | 15mm | ||
 |
3123 |
1.25in | 1in | 0.4in | 31.8mm | 25.4mm | 10.2mm | ||
 |
VC75125 |
0.75in x 1.25in | 1.06in | 0.06in | 19 x 32mm | 26.9mm | 1.5mm | ||
 |
18092-1 |
1.18in | 0.62in | 0.21in | 30mm | 15.7mm | 5.3mm | ||
 |
18092-3 |
1.18in | 0.62in | 0.21in | 30mm | 15.7mm | 5.3mm | ||
 |
18092-8 |
1.18in | 0.62in | 0.21in | 30mm | 15.7mm | 5.3mm | ||
 |
18092-11 |
1.18in | 0.62in | 0.21in | 30mm | 15.7mm | 5.3mm | ||
 |
68 |
1.12in | 0.25in | 0.25in | 28.4mm | 6.4mm | 6.4mm | ||
 |
80 |
1.12in | 0.25in | 0.7in | 28.4mm | 6.4mm | 17.8mm | ||
 |
80-Hard |
1.12in | 0.25in | 0.7in | 28.4mm | 6.4mm | 17.8mm | ||
 |
80-Silicone |
1.12in | 0.25in | 0.7in | 28.4mm | 6.4mm | 17.8mm | ||
 |
11 – 6E7 |
1.06in | 0.81in | 0.25in | 26.9mm | 20.6mm | 6.4mm | ||
 |
12 |
1.06in | 0.75in | 0.22in | 26.9mm | 19.1mm | 5.6mm | ||
 |
12-S |
1.06in | 0.75in | 0.22in | 26.9mm | 19.1mm | 5.6mm | ||
 |
110 |
1.06in | 0.65in | 0.44in | 26.9mm | 16.5mm | 11.2mm | ||
 |
112 |
1.05in | 0.79in | 0.25in | 26.7mm | 20.1mm | 6.4mm | ||
 |
CC-1877-A |
1.04in | 0.57in | 0.29in | 26.4mm | 14.5mm | 7.4mm | ||
 |
106 |
1.03in | 0.59in | 0.23in | 26.2mm | 15mm | 5.8mm | ||
 |

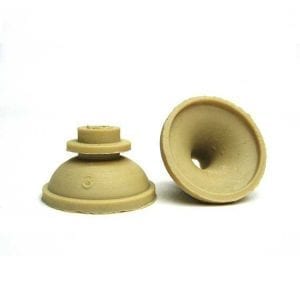

3 Gum |
1in | 0.62in | 0.18in | 25.4mm | 15.7mm | 4.6mm | ||
 |

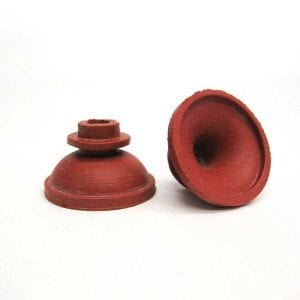

3 Red |
1in | 0.62in | 0.18in | 25.4mm | 15.7mm | 4.6mm | ||
 |
4 |
1in | 0.31in | 0.3in | 25.4mm | 7.9mm | 7.6mm | ||
